Product Details
Place of Origin: Jinan, Shandong
Brand Name: JIURUNFA
Certification: ISO9001
Model Number: 1#80
Payment & Shipping Terms
Minimum Order Quantity: 1 Square meter
Price: $0.97-2.88
Packaging Details: Plastic sealed packaging
Delivery Time: 5-14 work days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 10000 Square meter
Hydrostatic Pressure: |
1000–10000 MmH₂O |
Temperature Resistance: |
-30℃ To +80℃ (Up To -50℃ Optional) |
Base Fabric Material: |
Shandong, China |
Brand Name: |
JRF |
Base Fabric: |
Polyester, Cotton, Nylon, Fiberglass, Blended |
Coating Type: |
PVC, PU, PE, EVA, PTFE |
Flame Retardant Grade: |
NFPA 701 / B1 / M1 |
Breathability: |
500–5000 G/m²·24h |
Color Options: |
White, Black, Gray, Green, Custom (Pantone Support) |
Surface Finish: |
Matte / Semi-matte / Glossy / High-gloss |
Mold Resistance: |
Grade 0 – 5 (Up To 3A Industrial Standard) |
UV Protection: |
UPF 30+ / 50+ / 100+ |
Service Life: |
3 – 10 Years |
Environmental Certification: |
ROHS / REACH / OEKO-TEX / EN-71 |
Base Fabric: |
Polyester, Nylon, Fiberglass, Aramid/Kevlar |
Weaving Method: |
Plain Weave, Twill Weave, Etc. |
Thickness: |
0.08 - 1.0 Mm (common Range) |
Width: |
1000 - 2000 Mm (common), Customizable |
Hydrostatic Pressure: |
1000–10000 MmH₂O |
Temperature Resistance: |
-30℃ To +80℃ (Up To -50℃ Optional) |
Base Fabric Material: |
Shandong, China |
Brand Name: |
JRF |
Base Fabric: |
Polyester, Cotton, Nylon, Fiberglass, Blended |
Coating Type: |
PVC, PU, PE, EVA, PTFE |
Flame Retardant Grade: |
NFPA 701 / B1 / M1 |
Breathability: |
500–5000 G/m²·24h |
Color Options: |
White, Black, Gray, Green, Custom (Pantone Support) |
Surface Finish: |
Matte / Semi-matte / Glossy / High-gloss |
Mold Resistance: |
Grade 0 – 5 (Up To 3A Industrial Standard) |
UV Protection: |
UPF 30+ / 50+ / 100+ |
Service Life: |
3 – 10 Years |
Environmental Certification: |
ROHS / REACH / OEKO-TEX / EN-71 |
Base Fabric: |
Polyester, Nylon, Fiberglass, Aramid/Kevlar |
Weaving Method: |
Plain Weave, Twill Weave, Etc. |
Thickness: |
0.08 - 1.0 Mm (common Range) |
Width: |
1000 - 2000 Mm (common), Customizable |

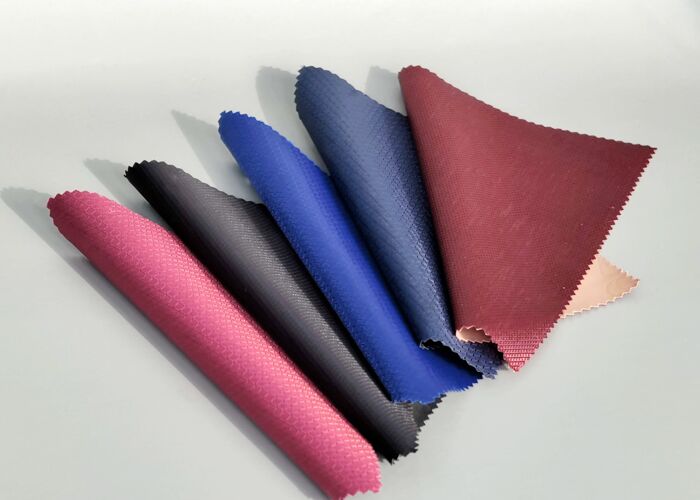

Coated Fabric Product ntroduction
Coated fabric is a funcionalcomposite material made by coaing polyester,coton,fiberglass cloth, or ther simlar materials with Pvc, PU,PE, siicne, or acplic materials.ltcombines the mechanical strength of the texle base withthe protective properies of the coaing, achieving a variety of characteristics such as waterproofing, oil resistance.abrasion resistance, flame relardancy,tear resistance, anibacterial properies,and UV resistance. tis widely usd in industrial equipment protecion,medical dressings, outdoolproducts.transport2nctocnnica teyiec
Coated fabric product parameters
| Item | Typical Range / Value | Description |
|---|---|---|
| Base fabric material | Shandong, China | - |
| Brand Name | JRF | - |
| Base Fabric | Polyester, Cotton, Nylon, Fiberglass, Blended | Selected according to application |
| Coating Type | PVC, PU, PE, EVA, PTFE | Different coatings for different performance |
| Surface Treatment | Waterproof, Fireproof, Anti-UV, Anti-static, Anti-mildew, Abrasion-resistant | Customizable functions |
| Weight (g/m²) | 150 – 1200 (Common: 300–600 g/m²) | Customizable |
| Thickness | 0.15 mm – 2.0 mm | Can be increased by lamination |
| Width | 1.00m / 1.50m / 2.00m / 3.20m | Supports customized cutting |
| Tensile Strength (Warp) | 800–4500 N/5cm | EN ISO 1421 Standard |
| Tensile Strength (Weft) | 500–3500 N/5cm | EN ISO 1421 Standard |
| Tear Strength (Warp) | 80–600 N | ASTM D751 Standard |
| Tear Strength (Weft) | 80–600 N | ASTM D751 Standard |
| Hydrostatic Pressure | 1000–10000 mmH₂O | Waterproof rating |
| Temperature Resistance | -30℃ to +80℃ (Up to -50℃ optional) | Outdoor performance |
| Flame Retardant Grade | NFPA 701 / B1 / M1 | Certificates available |
| Breathability | 500–5000 g/m²·24h | PU/TPU breathable |
| Color Options | White, Black, Gray, Green, Custom (Pantone support) | Customizable |
| Surface Finish | Matte / Semi-matte / Glossy / High-gloss | Optional |
| Mold Resistance | Grade 0 – 5 (Up to 3A Industrial Standard) | Anti-mildew test |
| UV Protection | UPF 30+ / 50+ / 100+ | For outdoor use |
| Service Life | 3 – 10 years | Depends on usage environment |
| Environmental Certification | ROHS / REACH / OEKO-TEX / EN-71 | Reports available |
Features of coated fabric products
Coated fabric posseses high strengh, waterproof, corosion-resisitanl, weaher-resistant, customizable fame-retardant and enronmentaly friendly properies,making itsuitalblefor various industrial and outdoor environments. it is a cost-effective, long-lasting, and fexible functional material.
Coated Fabric Product Cases
Customer Issue: A North American truck tarp manufacturer received numerous customer complaints that the tarps were tearing in the wind at high speeds, especially at the edges. Frequent tarp replacements increased fleet operating costs.
Solution: Upgrade to high-strength vinyl-coated polyester mesh. This fabric incorporates high-strength polyester industrial yarns in both warp and weft, achieving a tensile strength of 3000N/5cm, and the edges can be reinforced with high-frequency welding.
Results: The new tarps withstood wind pressure tests at 120km/h during simulated road tests across the United States, extending their lifespan from 6 months to 3 years. The customer increased the warranty period from 1 year to 2 years, and market share increased by 15%.
About Us
Jiurunfa's services cover the entire cooperation cycle.
In the pre-sales stage, we offer free technical consultation and precise customized sampling to ensure materials perfectly match your application scenarios. During the sales stage, order progress is transparent and controllable throughout the entire process; we proactively communicate rather than conceal any issues, ensuring a stable supply chain. In the after-sales stage, we promise a 24-hour response time, a 72-hour solution provision, and provide quality traceability and lifetime technical advisor support.
We not only provide high-quality coated fabrics, but we are also committed to becoming your trusted full-process partner.
